| DMfit Stop & faucet adaptor valves | |
|
DMfit AV range of Stop & Faucet Valve Adaptor valves and Slip Tee Valves are manufactured in white Polypropylene, reinforced plastic with EPDM O-rings which provides value-added advantages in the installation of water supply line mainly. DMfit AV range of Stop & Faucet Valve Adaptors and Slip Tee Valves are designed for use in drinking water systems, refrigerators, Ice-Makers, humidifiers and water filtration applications, etc... Our valves offer greater efficiency than any traditional valves. DMfit AV valves have been approved in NSF/ANSI 61 & 372. |
|
 |
|
|

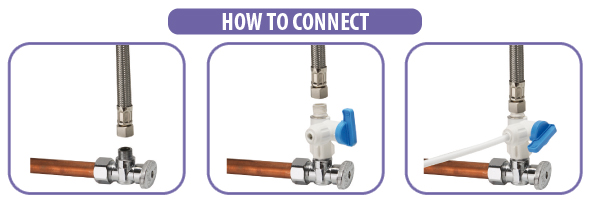

- Shut off your existing stop valve and disconnect the riser from the valve. - Connect our stop valve to the water valve. - Connect the riser to our valve. - Ensure the perfect connection every time. Open valves and check for leaks. |
|
| Working pressure and temperature | ||
| Pressure | 12 bar | 6 bar |
| Temperature | 20°C (70°F) | 65°C (150°F) |
D340
Installation Warning
This fitting must be hand tightened only.
Do not use wrenches, pliers, or any other tools for tightening. Excessive tightening force may damage the fitting.
Instruction: Hand tighten only.
D341
Conversion adaptor can be threaded to 1/2" x 1/2" NPS/BSPP or 3/8" x 3/8" Compression/BSPP
D343
5"(127MM) long.
Easy connection with your existing water line – Slip connection. Designed to be suitable for Copper, PEX and CPVC pipe.
D345
Contains:
1x 25ft(7,62mt.) 1/4" PE-RT Tubing
1x 1/4"x3/8" Stop Valve
1x 1/4" Female Adaptor
